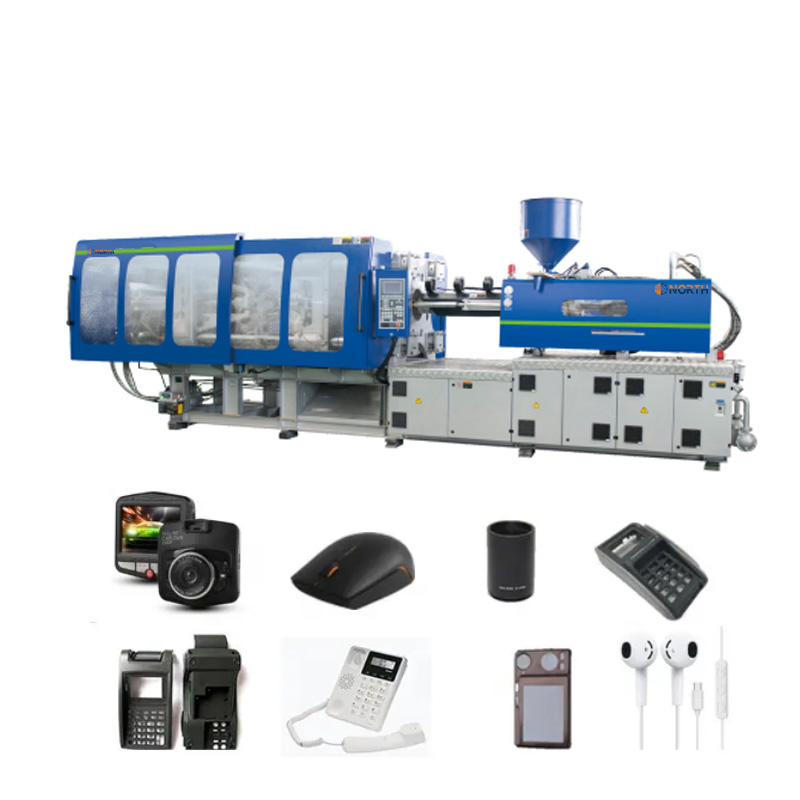

PET& PVC Special Injection Molding Machine

Advantages of PVC injection molding machine

PVC special screw with high perforance hardchroriurn plating or with slainless sleel

Widen the safety door (Optional)

Equipped with two or more core pulling device

Multi stage of air cool device on barrel for precisecontrol of material temperature

Large torque plasticizing hydraulic motor

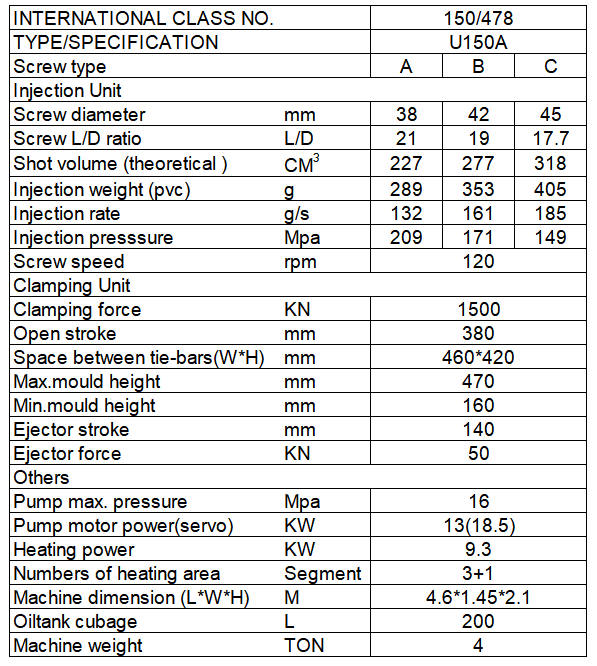

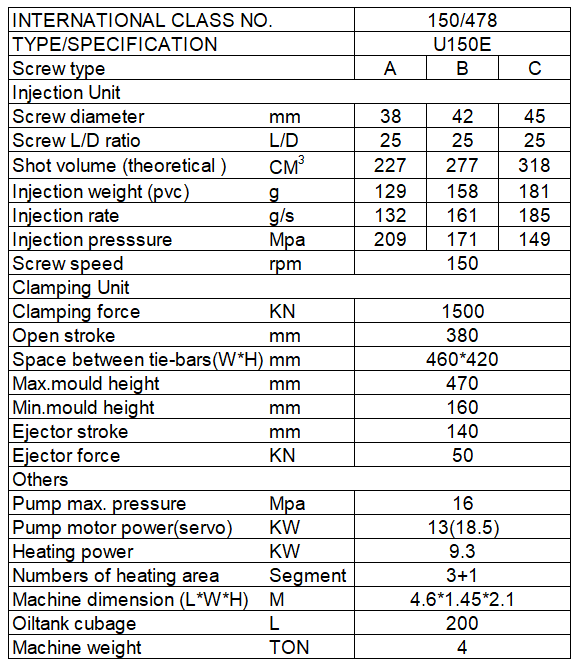

PVC technical parameters

PET technical parameters

FAQ:

P:What can the servo energy-saving injection molding machine do?

R:Servo energy-saving injection molding machines are widely used in defense, electromechanics, automobiles, transportation, building materials, packaging, agriculture, culture, education and health.

P:Special injection molding machine tonnage selection?

R:Choose different tonnages according to product weight or injection volume, such as 30T, 40T, 50T, 60T, 80T, 100T, 120T, 160T, 168T, 268T. Currently, the largest tonnage in China is 4000T. The larger the tonnage, the larger the screw diameter of the injection molding machine.

P:What is the difference between a servo energy-saving injection molding machine and a common injection molding machine?

R:Ordinary injection molding machines are electric motors driving hydraulic motors, and are always operating at full power and full load. The hydraulic system of the servo injection molding machine supplies oil according to the actual required flow and pressure, achieving the advantages of energy saving, environmental protection, high repeatability, reliability and durability, etc.
