plastic injection molding equipment 1200KN

Clamping structure/unit as well as machine body is with high rigidity & high load capacity designwhich can ensure machine's stability and durability.

Suitable hydraulic system design matches with high response controller, which guarantees themachine with shorter cycle time and achieve high speed / precision function requirement.

We have adopted oil self-ubricating bushings and good quality steel rod as well as longlifespan design and manufacture of clamping pins for the machine.

Coaxial and high agility single cylinder fast injection structure has greatly improved theplastics melting capacity & plasticizing performance.

The machine is suitable for the processing of thin-wall packing and long flow path products, so as to make sure the production efficiency accordingly.

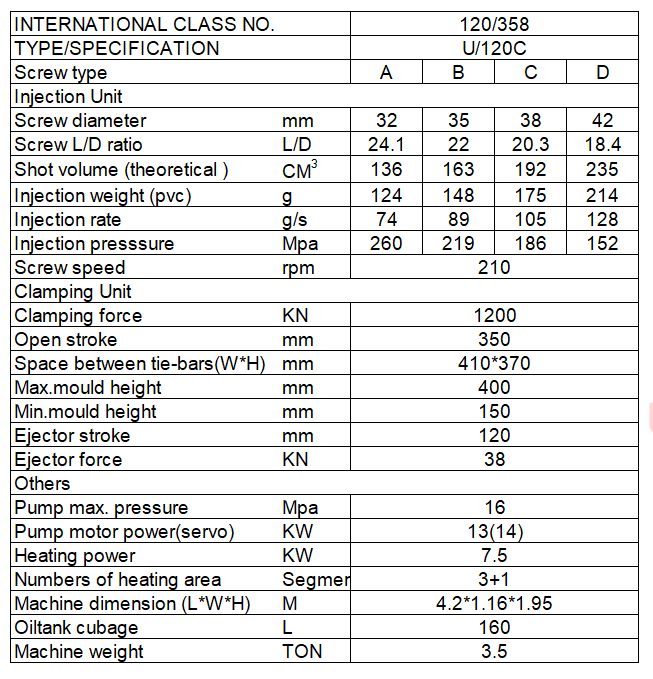

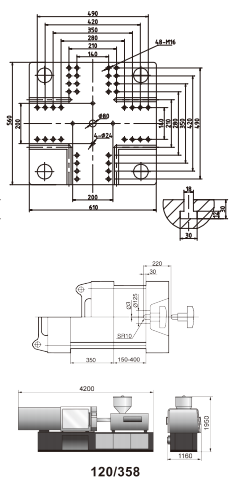

Product Specifications

FAQ:

P:What can the servo energy-saving injection molding machine do?

R:Servo energy-saving injection molding machines are widely used in defense, electromechanics, automobiles, transportation, building materials, packaging, agriculture, culture, education and health.

P:Special injection molding machine tonnage selection?

R:Choose different tonnages according to product weight or injection volume, such as 30T, 40T, 50T, 60T, 80T, 100T, 120T, 160T, 168T, 268T. Currently, the largest tonnage in China is 4000T. The larger the tonnage, the larger the screw diameter of the injection molding machine.

P:What is the difference between a servo energy-saving injection molding machine and a common injection molding machine?

R:Ordinary injection molding machines are electric motors driving hydraulic motors, and are always operating at full power and full load. The hydraulic system of the servo injection molding machine supplies oil according to the actual required flow and pressure, achieving the advantages of energy saving, environmental protection, high repeatability, reliability and durability, etc.
